Advanced Mould Technique Silver Impaling Clips for Soundproofing Acoustical Insulation

Product Description

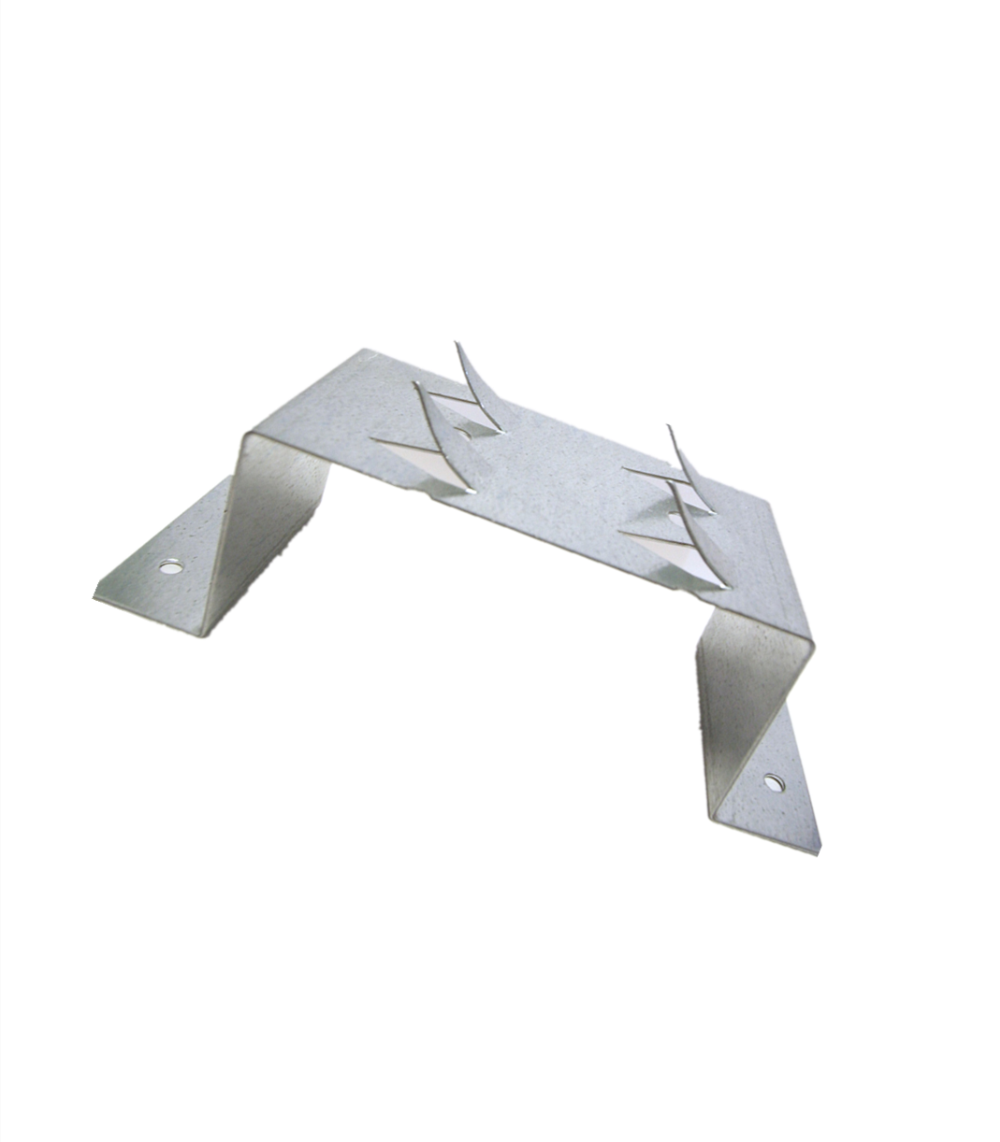

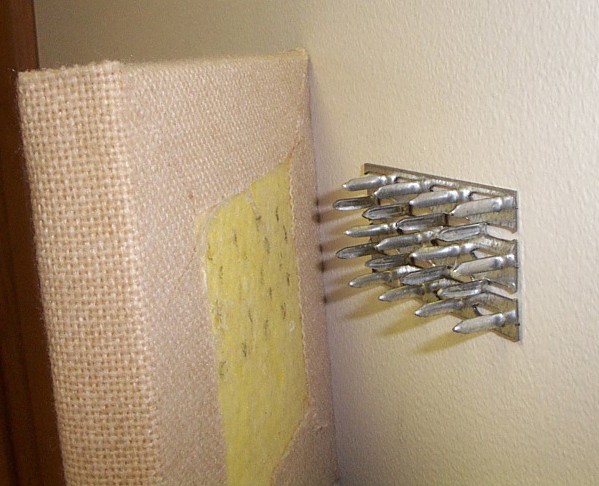

Impaling clips are used to easily attach Acoustic Panels (703 /705 Board) to walls. Each clip has 8 spikes that stick into the fiberglass panel backing and hold the panel in place. The dimensions of the clips are 2-1/8" x 1-1/2". The impaling clips are installed on the wall by either 1 drywall screw (not included) or attached with adhesive (Multi-Seal 180). 4-6 impaling clips are recommended per standard 2' x 4' panel making sure one impaling clip is placed in each corner. For panel applications requiring an air gap, wood spacer blocks can be installed between the acoustic panel mounting hardware and the drywall to keep the panel spaced off of the wall.

Pictures Show

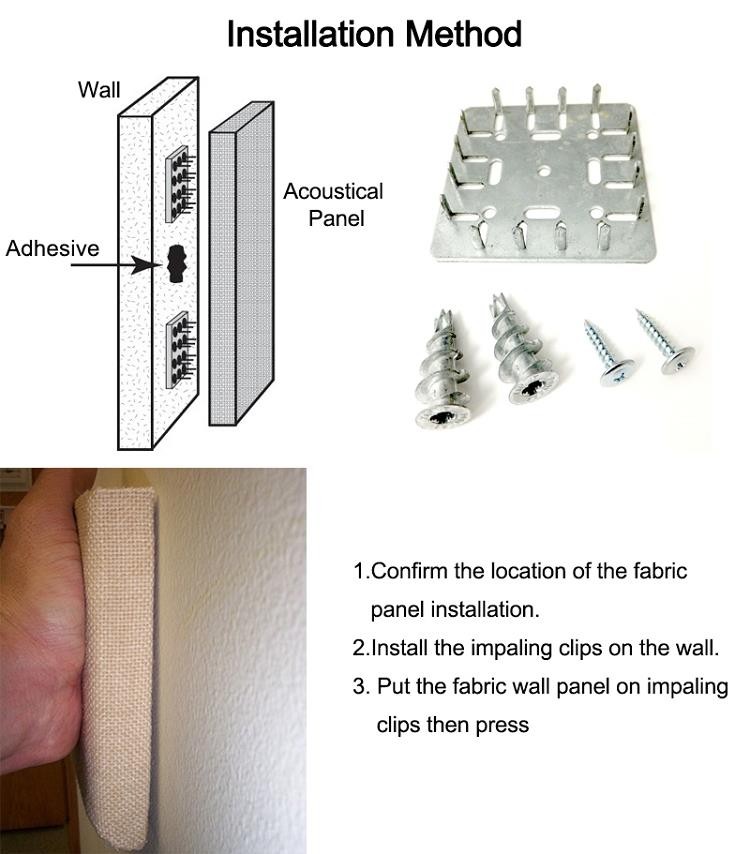

INSTRUCTIONS

1. Determine the location of your panel and have one person hold it up in place while the other person makes a light mark on the wall to show all 4 corners.

2. Attach 4 Impaling Clips approx 3" off each corner edge and an optional 2 more impaling clips 3" in from the edge of the center of the panel. Acoustic panel mounting hardware should be screwed into the studs, so moving the clips a little to hit a stud is recommended. If screwing into a stud is not possible, use a drywall anchor type screw to ensure a proper hold.

3. For permanent placement, use adhesive on the wall to stick the back of the panel to the wall (adhesive such as Multi-Seal 180 is recommended).

Acoustic Panel Hange

ProPanel installation

ELiTE Hanger

Sound Barrier

FR701 Acoustic Panel

Paintable Acoustic Panel

QS Acoustic Panel

As a factory that specializes in metal fabrication for 20 years, Surealong now is turning to CNC machining as a means to speed manufacturing ability and increase repeatable accuracy. Stamping, bending, drilling, pressing, punching ... Various processing ways can be done here.

We have 5 engineers, 10 technicians and 120 members of staff who has at least 5years' experience, some have even 30yeasrs', our factory covers a vast area of 52,000 square meters.

Three foreign trade departments are on the day/night shift which was set up 3 years ago but already got many complements for our products quality and best services.

Nowadays we have many standard products like truss nail plates, joist hangers, and have them in stock.

Besides, we accept customized order like design, logo, packing etc..

Surealong factory is located in Cangzhou city, Hebei Province, which is one hour's drive away from Tianjin port.

Solution
Provide the best solution to customer.

Quality
Provide best quality product to customer.

Price
Reasonable price for customer, make win-win relationship.

Delivery
Quickly &safety delivery by all sort of transport mode.

Cooperation Mission
We win our customer by excellent quality, competitive price, prompt delivery, best solution.

NOTE:
One of our features is that products are customized according to clients' requirement

1. Good package design to protect stainless steel sheet metal fabrication parts .

1) Industrial Package: Plastic Film+Carton+Wooden Pallet

2) Commercial Package: Plastic Bag/Film+Carton+Wooded Pallet

3) As the clients requirements

2. We can arrange all kind of transportation to ship stainless steel sheet metal fabrication parts with low freight.For example DHL,UPS,TNT,FEDEX express,or by sea as your required.

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shippment.
